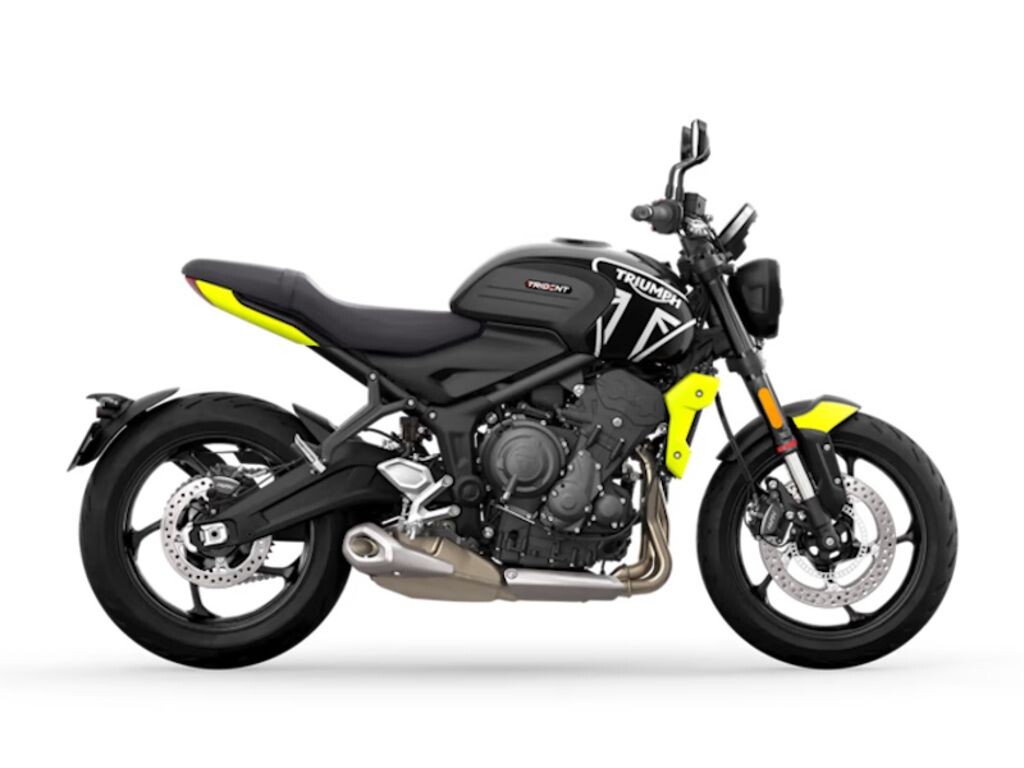

2024 Trident 660

Specifications

• Engine & Transmission

  add remove
  • Engine Type
    Liquid-cooled, 12 valve, DOHC, inline 3-cylinder
  • Capacity
    660 cc
  • Bore
    2.9 in
  • Stroke
    2 in
  • Compression
    11.95:1
  • Max Power
    60 kW / 10250 rpm
  • Max Torque
    47.2 ft-lb / 6250 rpm
  • System
    Multipoint sequential electronic fuel injection with electronic throttle control
  • Exhaust
    Stainless steel 3 into 1 header system with low single sided stainless steel silencer
  • Final Drive
    X-ring chain
  • Clutch
    Wet, multi-plate, slip & assist
  • Gearbox
    6 speed
• Chassis

  add remove
  • Frame
    Tubular steel perimeter frame
  • Swingarm
    Twin-sided, fabricated steel
  • Front Wheel
    Cast aluminium, 17 x 3.5 in
  • Rear Wheel
    Cast aluminium, 17 x 5.5 in
  • Front Tyre
    120/70R17
  • Rear Tyre
    180/55R17
  • Front Suspension
    Showa 41mm upside down separate function forks (SFF)
  • Rear Suspension
    Showa monoshock RSU, with preload adjustment
  • Front Brake
    Nissin two-piston sliding calipers, twin 310mm discs, ABS
  • Rear Brake
    Nissin single-piston sliding caliper, single 255mm disc, ABS
• Dimensions & Weights

  add remove
  • Width Handlebars
    31.3 in
  • Height Without Mirror
    42.9 in
  • Seat Height
    31.7 in
  • Wheelbase
    55.2 in
  • Rake
    24.6 °
  • Trail
    4.2 in
  • Tank Capacity
    3.7 gal
  • Wet Weight
    189 kg
• Fuel Consumption

  add remove
  • Fuel Consumption
    60.1 mpg (4.5 l/100km)
  • CO₂ Figures
    107 g/km EURO 5 CO2 emissions and fuel consumption data are measured according to regulation 168/2013/EC. Figures for fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real driving results.
• Color options

  add remove
  • Jet Black / Triumph Racing Yellow
  • Matte Black / Matte Silver Ice
  • Silver Ice Diablo Red
  • Sapphire Black
