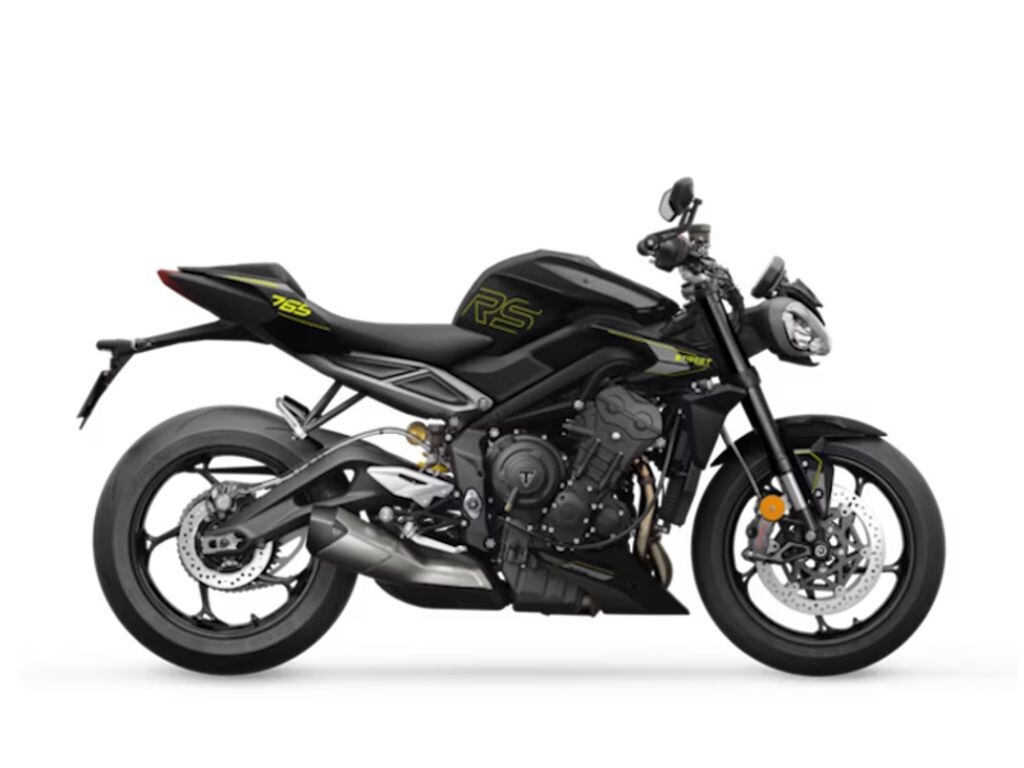

2025 Street Triple 765 RS

Specifications

• Engine & Transmission

  add remove
  • Engine Type
    Liquid-cooled, 12 valve, DOHC, inline 3-cylinder
  • Capacity
    765 cc
  • Bore
    3.1 in
  • Stroke
    2.1 in
  • Compression
    13.25:1
  • Max Power
    95.6 kW / 12000 rpm
  • Max Torque
    59 ft-lb / 9500 rpm
  • System
    Multipoint sequential electronic fuel injection with electronic throttle control
  • Exhaust
    Stainless steel 3 into 1 header system with low single sided stainless steel silencer
  • Final Drive
    X-ring chain
  • Clutch
    Wet, multi-plate, slip
  • Gearbox
    6 speed
• Chassis

  add remove
  • Frame
    Aluminium beam twin spar frame with 2 piece high pressure die cast rear subframe
  • Swingarm
    Twin-sided, cast aluminium alloy
  • Front Wheel
    Cast aluminium alloy 5 spoke, 17 x 3.5 in
  • Rear Wheel
    Cast aluminium alloy 5 spoke, 17 x 5.5 in
  • Front Tyre
    120/70 ZR 17
  • Rear Tyre
    180/55 ZR 17
  • Front Suspension
    Showa 41 mm upside down Big Piston Forks (BPF), adjustable compression and rebound damping, and preload adjustment. 115mm wheel travel
  • Rear Suspension
    Öhlins STX40 piggyback reservoir monoshock, adjustable compression and rebound damping, and preload adjustment. 131.2mm wheel travel
  • Front Brake
    Twin 310 mm floating discs, Brembo Stylema 4-piston radial monobloc calipers, OC-ABS, Brembo MCS radial master cylinder
  • Rear Brake
    Single 220 mm disc, Brembo single piston caliper, OC-ABS
  • Instrument Display and Functions
    Full colour 5" TFT instruments
• Dimensions & Weights

  add remove
  • Width Handlebars
    31.2 in
  • Height Without Mirror
    41.9 in
  • Seat Height
    32.9 in
  • Wheelbase
    55.1 in
  • Rake
    23.2 º
  • Trail
    3.8 in
  • Tank Capacity
    4 gal
  • Wet Weight
    414 lb
• Fuel Consumption

  add remove
  • CO₂ Figures
    EPA Procedure CO2 emissions and fuel consumption data are measured according to regulation 40 CFR Part 86 Subpart F. Figures for fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real driving results.
• Features

  add remove
  • Wheels and Tires
    Pirelli Diablo Supercorsa V3 tires
  • Clutch
    Slip & assist clutch
• Technology

  add remove
  • Riding modes
    5 riding modes (Rain, Road, Sport, Track and Rider)
  • Instruments
    5” TFT instruments
  • ABS
    Optimized Cornering ABS
• Color options

  add remove
  • Phantom Black
  • Silver Ice
  • Carnival Red
  • Cosmic Yellow
