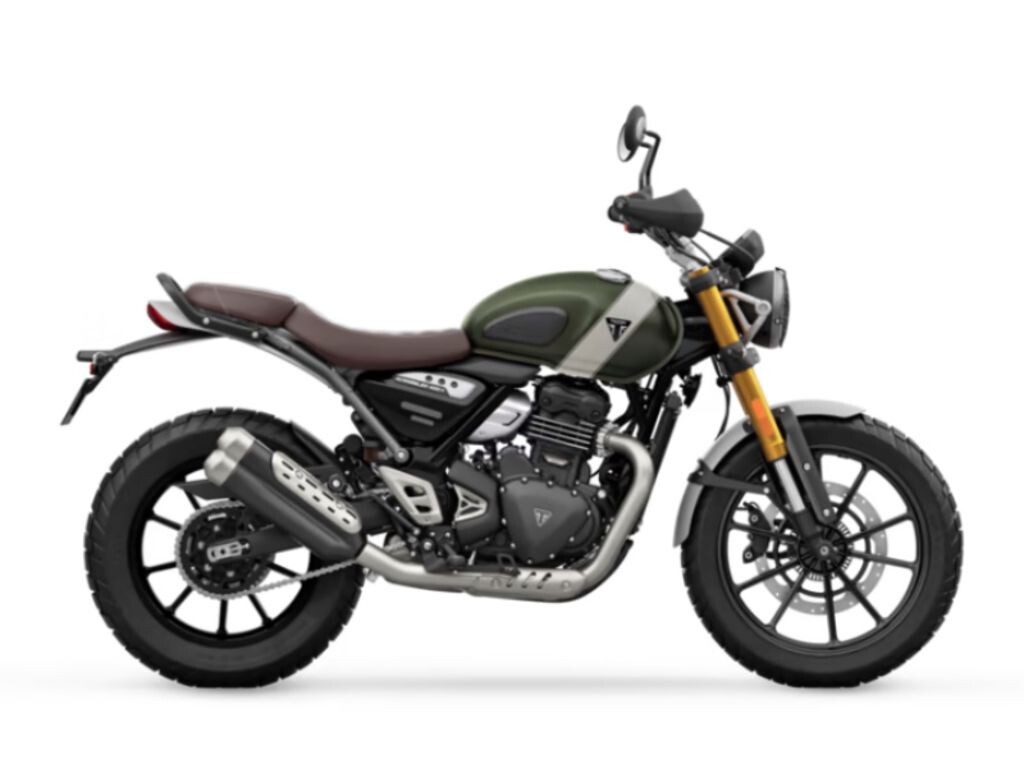

2025 Scrambler 400 X

Specifications

• Engine & Transmission

  add remove
  • Engine Type
    Liquid-cooled, 4 valve, DOHC, single-cylinder
  • Capacity
    398.15 cc
  • Bore
    3.5 in
  • Stroke
    2.5 in
  • Compression
    12:1
  • Max Power
    29.4 kW / 8000 rpm
  • Max Torque
    27.7 ft-lb / 6500 rpm
  • System
    Bosch electronic fuel injection with electronic throttle control
  • Exhaust
    Stainless twin-skin header system with stainless steel silencer
  • Final Drive
    X-ring chain
  • Clutch
    Wet, multi-plate, slip
  • Gearbox
    6 speed
• Chassis

  add remove
  • Frame
    Hybrid spine/perimeter, tubular steel, bolt-on rear subframe
  • Swingarm
    Twin-sided, cast aluminium alloy
  • Front Wheel
    Cast aluminium alloy 10 spoke, 19 x 2.5 in
  • Rear Wheel
    Cast aluminium alloy 10 spoke, 17 x 3.5 in
  • Front Tyre
    100/90 R19
  • Rear Tyre
    140/80 R17
  • Front Suspension
    43mm upside down Big Piston forks. 150mm wheel travel
  • Rear Suspension
    Gas monoshock RSU with external reservoir and pre-load adjustment. 150mm wheel travel
  • Front Brake
    320mm fixed disc, four-piston radial caliper, ABS
  • Rear Brake
    230mm fixed disc, ByBreTM single piston floating caliper, ABS
  • Instrument Display and Functions
    Analogue speedometer with integrated multi-function LCD screen
• Dimensions & Weights

  add remove
  • Width Handlebars
    35.5 in
  • Height Without Mirror
    46 in
  • Seat Height
    32.9 in
  • Wheelbase
    55.8 in
  • Rake
    23.2 º
  • Trail
    4.3 in
  • Tank Capacity
    3.4 gal
  • Wet Weight
    395 lb
• Fuel Consumption

  add remove
  • Fuel Consumption
    -
  • CO₂ Figures
    EPA Procedure CO2 emissions and fuel consumption data are measured according to regulation 40 CFR Part 86 Subpart F. Figures for fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real driving results.
• Color options

  add remove
  • Matt Khaki Green / Fusion White
  • Carnival Red / Phantom Black
  • Phantom Black / Silver Ice
